 German V-2 Rocket

An original Estes "Maxi Brute" German V-2 Rocket, 1/19 scale. Original release - 1974. The bird used a single "D" engine and two 24" parachutes: one for the booster and one for the nose cone. The German V-2 was the work of the VonBraun team and was the first successful IRBM used in warfare.

Russian Proton Rocket

Scratch-built Russian Proton Booster. Built in 1984. Designed to fly on single "C" engine power withe a single 24" parachute.

Martin-Marietta Titan IIIE Rocket

Estes Titan IIIE, in 1/73 scale. Original release - 1989. Hand-painted fairing emblems for two satellite owners: Skynet and JC Sat, as the Titan could loft two Hughes 360 Series telecom satellites at the same time.

NASA Space Shuttle

An original Estes Space Shuttle, in approx. 1/162 scale. Original release - 1977 - four years before STS-1 flew! The bird flies with only the C6-3 engine. At apogee, the Orbiter separates from the SRB-ET section, which glides back to a landing while the booster section returns by 18" parachute. At one time, I owned three of these. One badged as "Columbia" with a white ET, and two badged as "Challenger" and "Discovery" as each new Orbiter came "on-line."

Early Space Shuttle Concept

An original Centuri Space Shuttle. Original release - 1975. The model depicts and actually flies the way the original NASA Space Shuttle was supposed to - both the booster section and the Orbiter return as gliders - a fully reusable vehicle. The engine pod ejected itself from the Orbiter's tail at apogee.

American Rocket Co.

Conestoga 2 Rocket

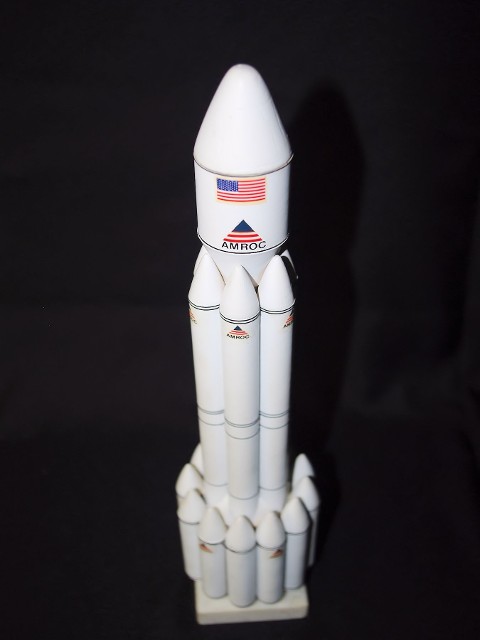

A scratch-built model of the American Rocket Company (AMROC) concept for their "Conestoga 2" modular hybrid commercial launch vehicle. AMROC went bankrupt before this bird ever flew. The model was based on drawings published in Aviation Week in 1988.

McDonnell-Douglas

DCX SSTO Rocket

Centuri Industries' flying model of the McDonnell-Douglas "Delta Clipper" (DCX), which was the first prototype single-stage to orbit (SSTO) vehicle. The DCX made a number of successful test flights at Edwards Air Force Base, proving its ability to do vertical thrust-assisted landings, however, it never made it anywhere near orbit.

Apollo-Saturn IB Rocket

An original Estes Saturn 1B in 1/70 scale. Original release - 1967. This is the second incarnation of this model I have built. The first was flown, damaged, repaired, and lost in flight after years of flight service. The model shown was built in 1980 and detailed for the flight of Apollo-Soyuz, the last flight of Apollo-Saturn. The model rocket flew with a four-engine cluster of B or C series engines.

In 2021, I replaced the original Estes-supplied Apollo CM nose cone with an injection-molded plastic version, obtained from Apogee Components. Their version more accurately shows the surface detail of the Boost Protective Cover (BPC) which covered the exterior surfaces of the Apollo CM during the ride up through the atmosphere. It was jettisoned after separation from the S-1B first stage.

Gemini-Titan II Rocket

An original Estes Gemini-Titan II. Original release - 1966. The model is approx. 1/54 semi-scale and was the largest model of the Gemini-Titan available. The bird flew with a two-engine cluster of B or C series engines.

Here's the venerable Gemini-Titan II, after a recent renovation, using Accur8 Spacemodels "booster skins," Aerobotix 3D printed Gemini Spacecraft nosecone and LR-87 semi-scale engine covers. The Gemini spacecraft decals are custom-made, re-scaled versions of the Delta 7 Studios Gemini paper model renderings, printed onto white decal stock.

-

-

RSR 1/70 scale Little Joe II

This Real Space Rockets model is sold by Apogee Components and it very faithfully depicts the General Dynamics Little Joe II solid propellant-driven test rocket, used in the mid 60's to test the Launch Escape System of the Apollo Spacecraft. It features a fully-wrapped body tube, which provides good surface details, an injection-molded Apollo Command Module and LES Tower, 3D Printed fins and full-color decals. We added our own solid motor nozzles to the base for static display.

Space Exploration Technologies Co.

Falcon 9 Rocket

Originally released in 2010, the 1/86 scale model of the SpaceX Falcon 9 Commercial Rocket Booster model is now sold by SpaceX itself, but was originally available through Amazon.com. Now, SpaceX operates its own web store for merchandise sales on its own website.

Mercury-Redstone Rocket

An original Estes Mercury Redstone Rocket in 1/42 scale. Original release - 1968. The single-engine model is badged for the flight of Freedom 7 (MR7), which made Alan Shepard America's first astronaut in a suborbital flight on May 5, 1961.

We recently did a renovation of the Merc-Redstone, using "booster skin" applications made by Accur8 Spacemodels to add new detail and realism to the Redstone Booster. We made new "United States" and "Freedom 7" insignia decals for the spacecraft and the results were outstanding.

-

Jupiter-C Rocket with Explorer 1

The Estes model of the Jupiter C rocket which placed Explorer 1 into orbit, marking America's first Earth-orbiting satellite. The model is in the same scale as its cousin, the Mercury Redstone -1/42 scale. Original release date - 1987.

Mercury-Atlas Rocket

The Estes Mercury Atlas in 1/42 scale, the same scale as the Mercury Redstone and the Jupiter C. Original release date - 1995. The use of aluminum coated self-adhesive panels for the Atlas booster made this one of the most realistic-looking models ever made of the booster, as Atlas' skin was thin stainless steel. The model is badged for the flight of MA-6, "Friendship 7" which took John Glenn into orbit for the first time in the American Space Program on February 20, 1962.

-

RSR Atlas V (AV422) Rocket & Boeing CST-100

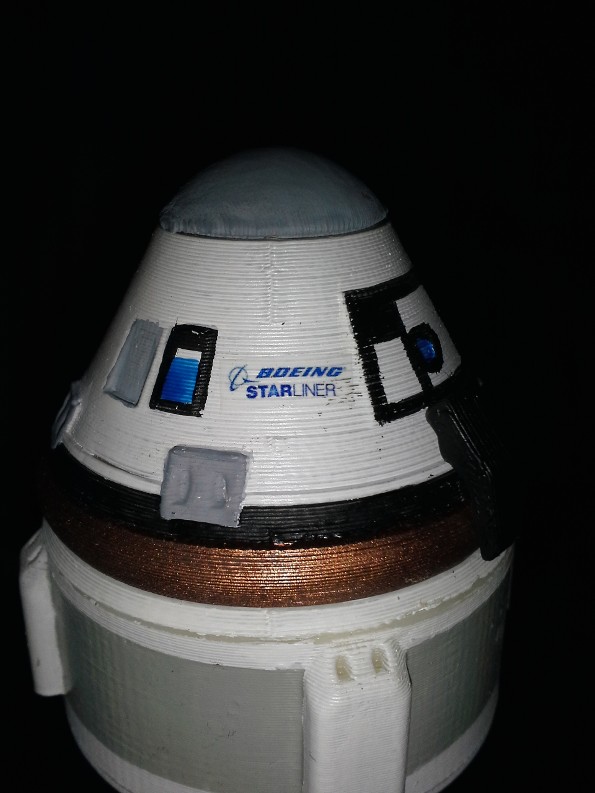

The RSR flying model is in 1/92 scale. The model depicts the configuration which should begin unmanned test flights by the end of 2017 and manned flight operations sometime in 2018. The model provides pre-printed body tubs for the Atlas booster and the Centaur upper stage, and 3D printed elements for the Atlas aft section, solid rocket motors and the Starliner spacecraft. We added our own "launch livery" markings, as they are normally part of ULA - Atlas launches. They include the responsible agency (NASA) the Commercial Crew Program logo, the Atlas program logo, the Boeing logo (CST-100) and the Unites Launch Alliance logo, the operators of the Atlas V vehicle. The "AV208" is a simple "flight sequence" indicator, chosen to emulate Boeing artwork of the flight vehicle.

-

-

1/86 scale SpaceX Falcon 9 V 2.0  Flying Model, with re-scaled AXM Paper Models Landing Legs

The SpaceX Falcon 9 Version 2 model is roughly in 1/86 scale, as was the original Version 1 model. The new model depicts the configuration which began flying the end of 2015 and performed six successful first stage landings, both on land at Cape Canaveral's Landing Zone 1, as well as on the SpaceX drone ships at sea, while delivering the second stage and payload into low Earth orbit. The model was provided with a pre-printed body tubes for the booster and black foam "sticker" applications to mimic the landing gear on the flight model. The black stickers left us a bit "cold," so I downloaded the necessary parts from the AXM Paper Space Models website, re-scaled them to 1/86, printed them out and applied them onto their locations on the booster. The dimensionality of the formed paper parts does a lot to make the model more realistic.

When the schedule for the first crewed flight of Dragon 2 was announced, we decided to get a copy of the 3D-printed Dragon 2 "upgrade" nose cone from Boyce Aerospace for our Falcon 9, Version 2.2 model. We made a special set of marking decals for it based on NASA & SpaceX photos and artwork from the AXM IFA flight paper model of the Dragon 2. That decal set is now on-sale in our Webstore.

Boyce Aerospace Hobbies - LCSP

SpaceX Falcon Heavy - 1/86 scale

We obtained the Falcon Heavy Upgrade Set, which included nose cones, folded landing legs, dummy engine clusters (Octowebs), attachment struts and spacers. These 3D printed parts, along with two additional 18" BT-60 body tubes, are used to turn a normal SpaceX Falcon Block 5 flying model into a Falcon Heavy flying model.

Above, the two side Booster Cores can be seen in mid-build.

However, as we already have two Falcon 9 flyers, one Block 2 and one Block 5, now wearing the Boyce Dragon II nosecone, we actually wanted to build-up a completely separate model. This required a couple more sections of BT-60, to re-create the Central Core and Second Stage of the Heavy, obtaining an additional dummy engine set from Boyce and transplanting the big Payload Fairing from the original Block 5 Falcon over to the Heavy.

We also decided to find some 3D printable models of the conduits that run along the sides of the Falcon Cores, for fuel lines, oxidizer lines, electrical power and range safety. It took a few trails & errors to get them right, but we managed to put together enough material to do all three cores.



We also found a set of logos used for the Falcon Heavy and rescaled them to match the 1/86 scale of the model.

A fine complement to the other SpaceX Falcon models in our display!
